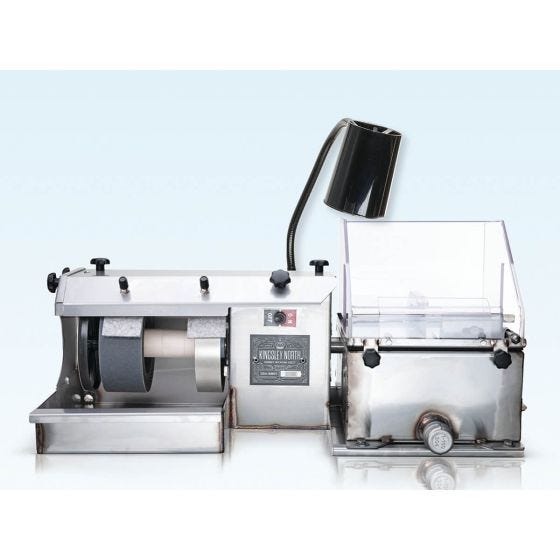

Kingsley North - Cut to Cab 6" - CTC6

The Kingsley North Cut To Cab 6" (CTC6) is a true all-in-one solution for cutting and cabbing. This compact unit combines a smooth-running trim saw with a complete cabbing setup, giving you everything you need to shape and finish cabochons.

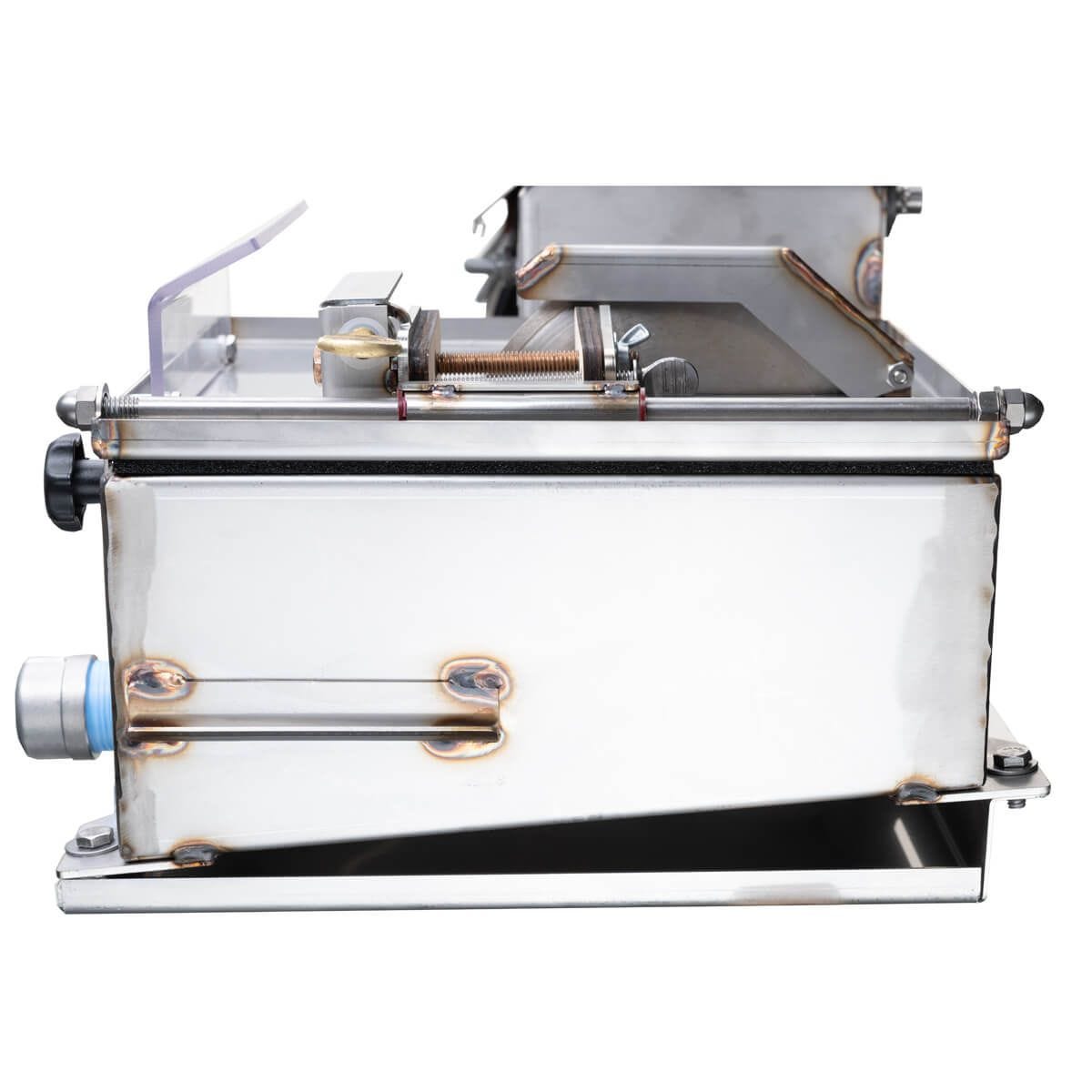

Both the saw and cabbing sides are built on an all-stainless-steel chassis. The 6" trim saw includes a removable clear hood with hand cutouts for accessible operation, and the manual sliding vise offers precise control for small slabs and crossfeed cuts.

On the cabbing side, you’ll find a 180-grit diamond wheel, an expandable drum, and a selection of silicon carbide belts, plus a 5.5" pre-charged cerium disc for final polish. Each wheel and disc has its own adjustable water valve for consistent coolant flow.

The saw reservoir features a slanted-bottom design and a large 1" drain, making it easy to clear out rock-particle slurry and clean the unit after use.

Features:

• 75 watt Led Flexible Lamp
• Assortment of Silicon Carbide belts
• 6" x 2.5" Expandable drum
• Clear Hood
• 1/3 hp Continuous duty motor
• Submersible water pump
• 180 Diamond Grinding Wheel
• 6" Sintered Diamond Blade (5/8" arbor)
• Manual sliding vise

Specs:

• Cut Depth with Blade Gaurd: 1.25”
• Full Cut Depth(no guard): 1.75”
• Saw Table: 9.5”W x 10.75”L
• Dimensions: 26.5”L x 24”W x 12.5”H
• Weight: 65 lbs.
• Shipped in two boxes
