Kingsley North Cabber 6 - KNC6 Rev 2
+ Write a ReviewSKU: 1-1336
Couldn't load pickup availability

Product details

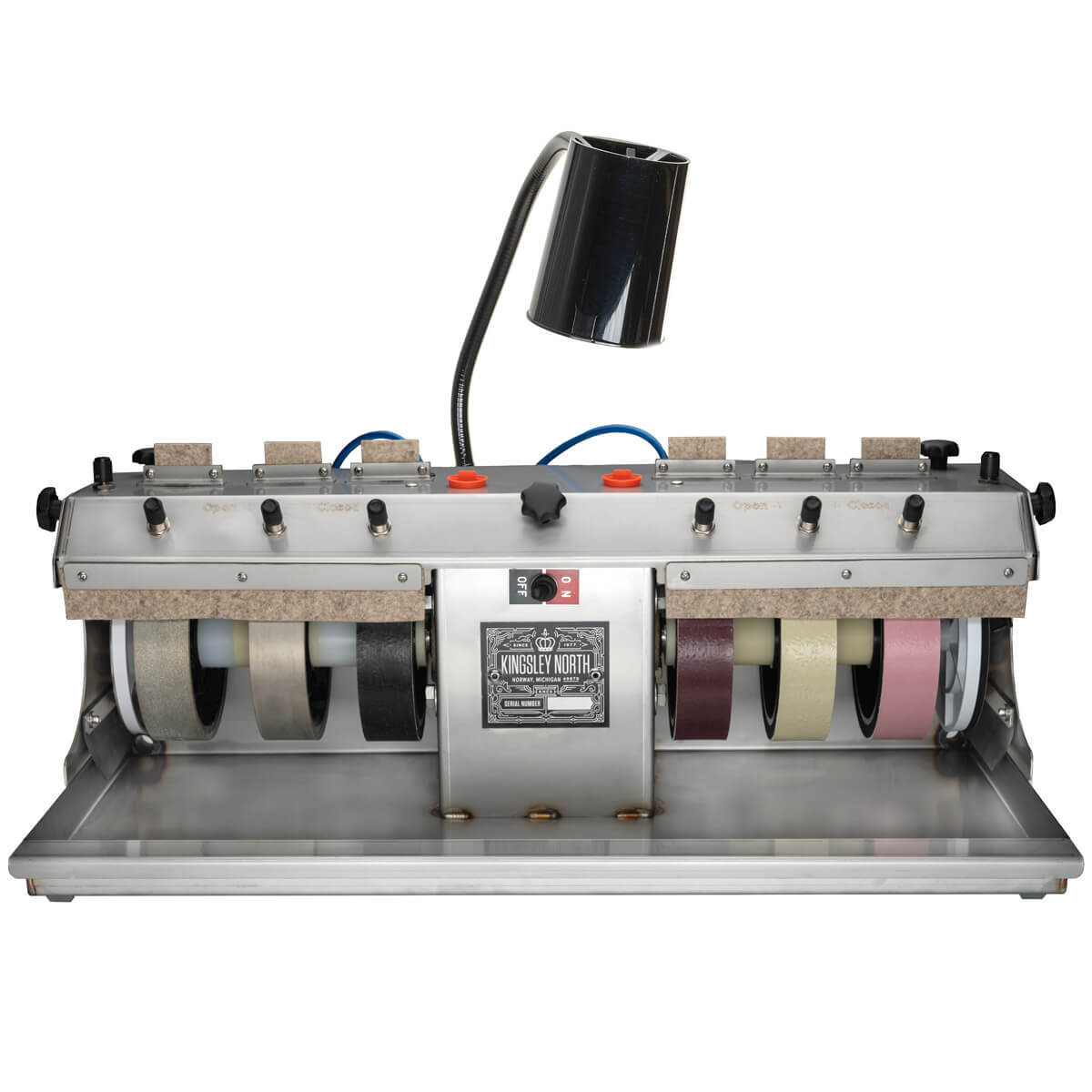

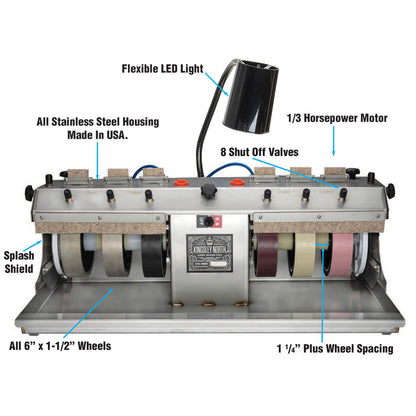

Description Kingsley North Cabber 6 - KNC6 Rev 2

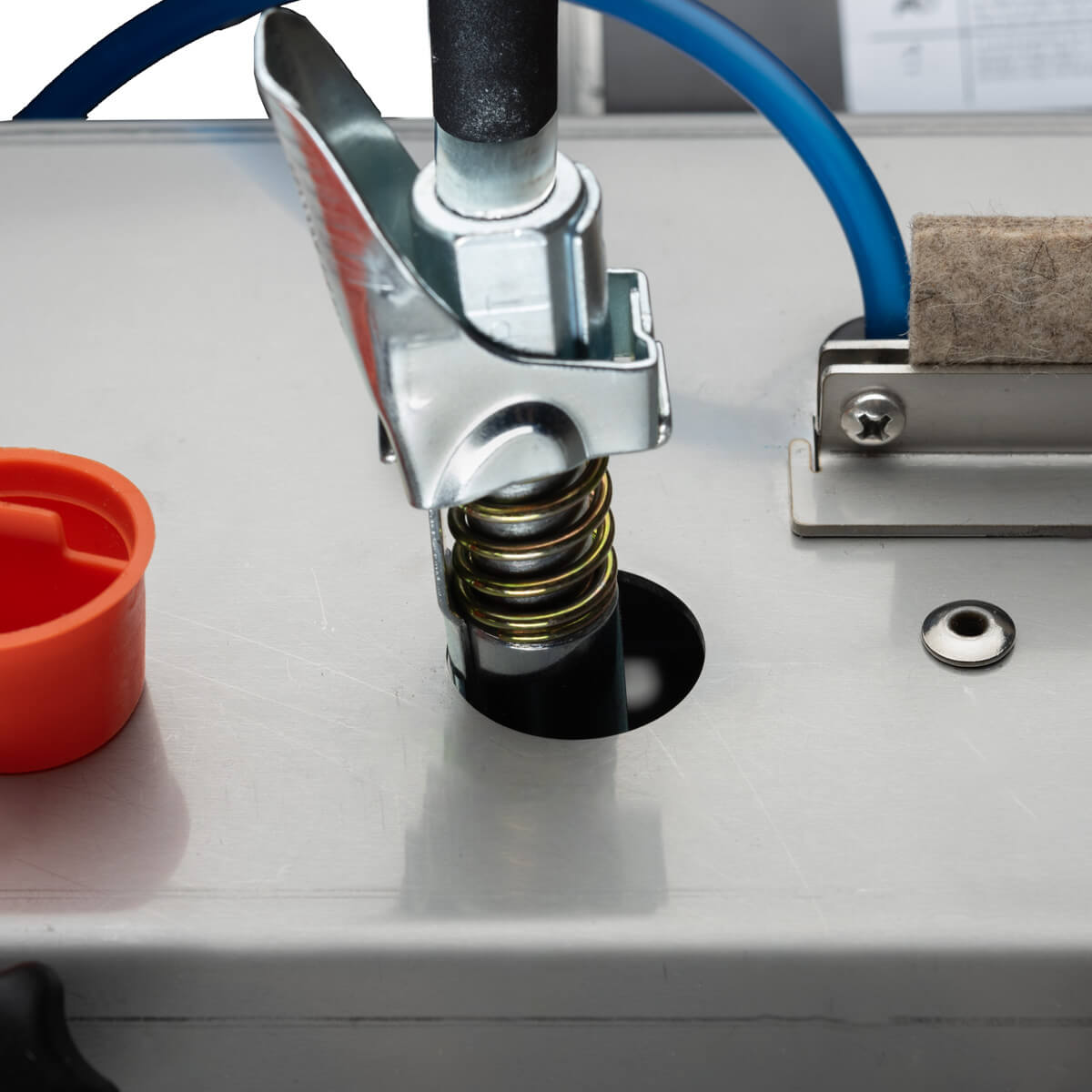

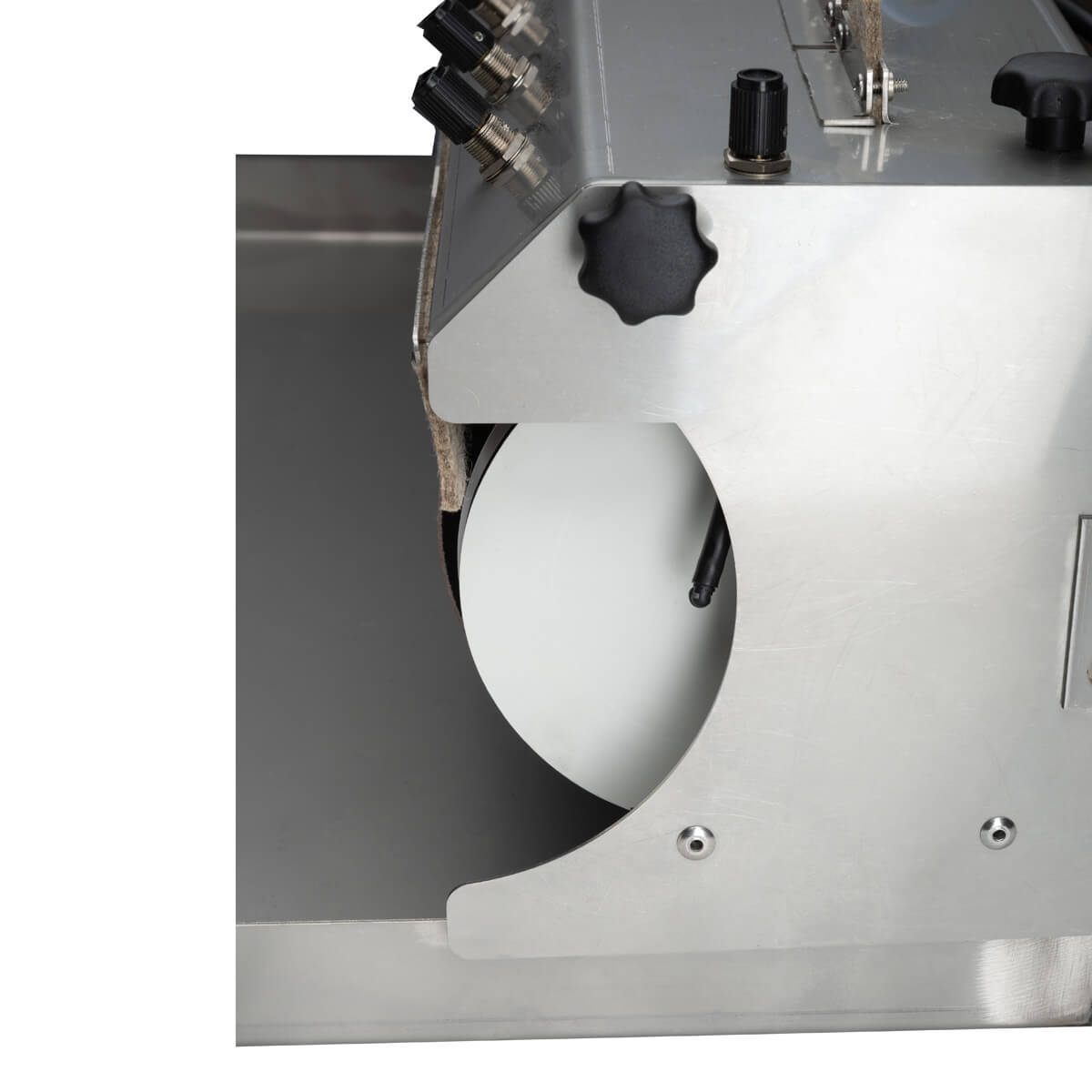

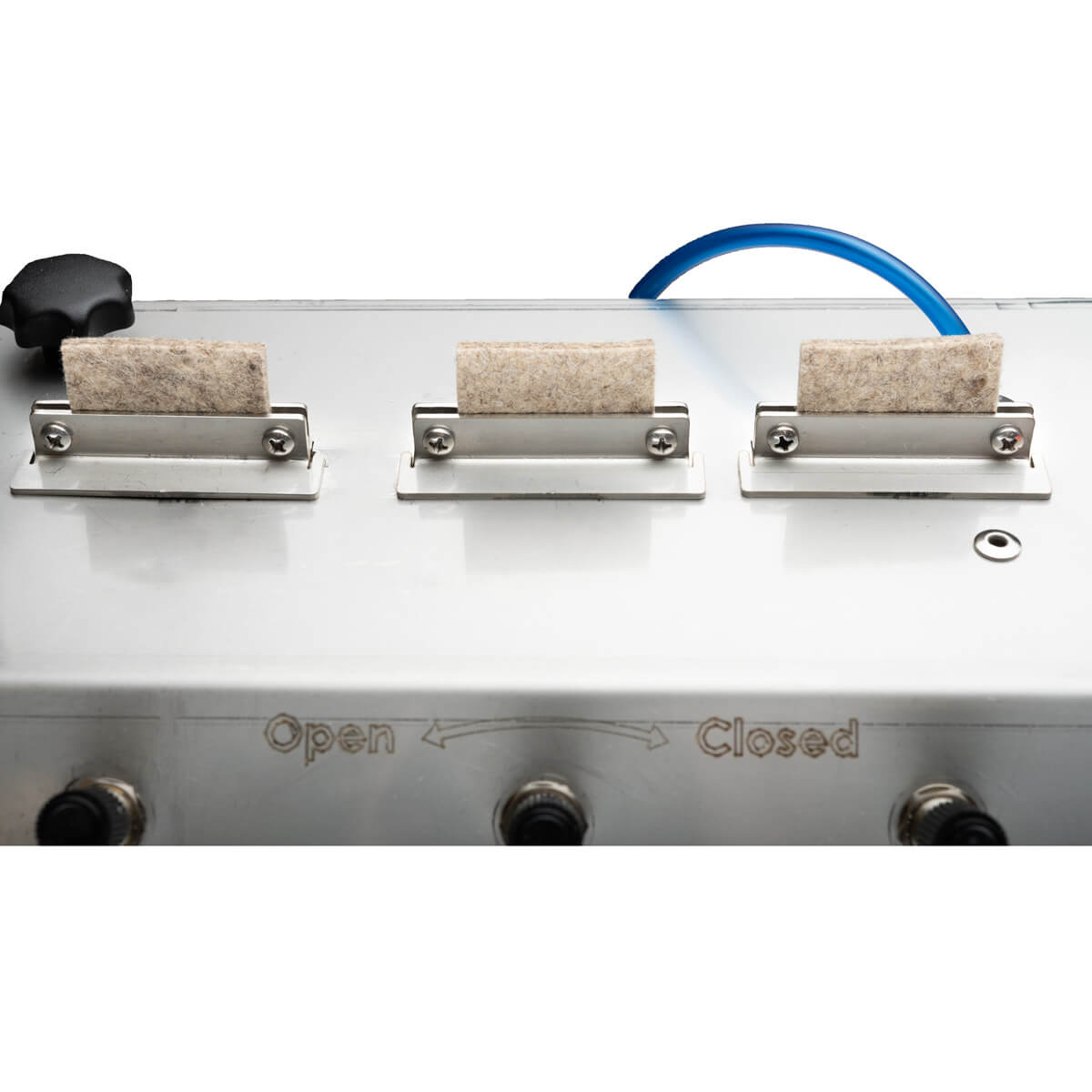

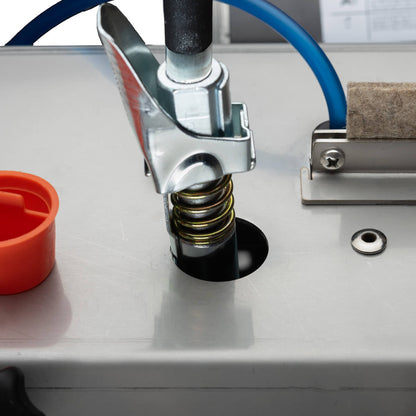

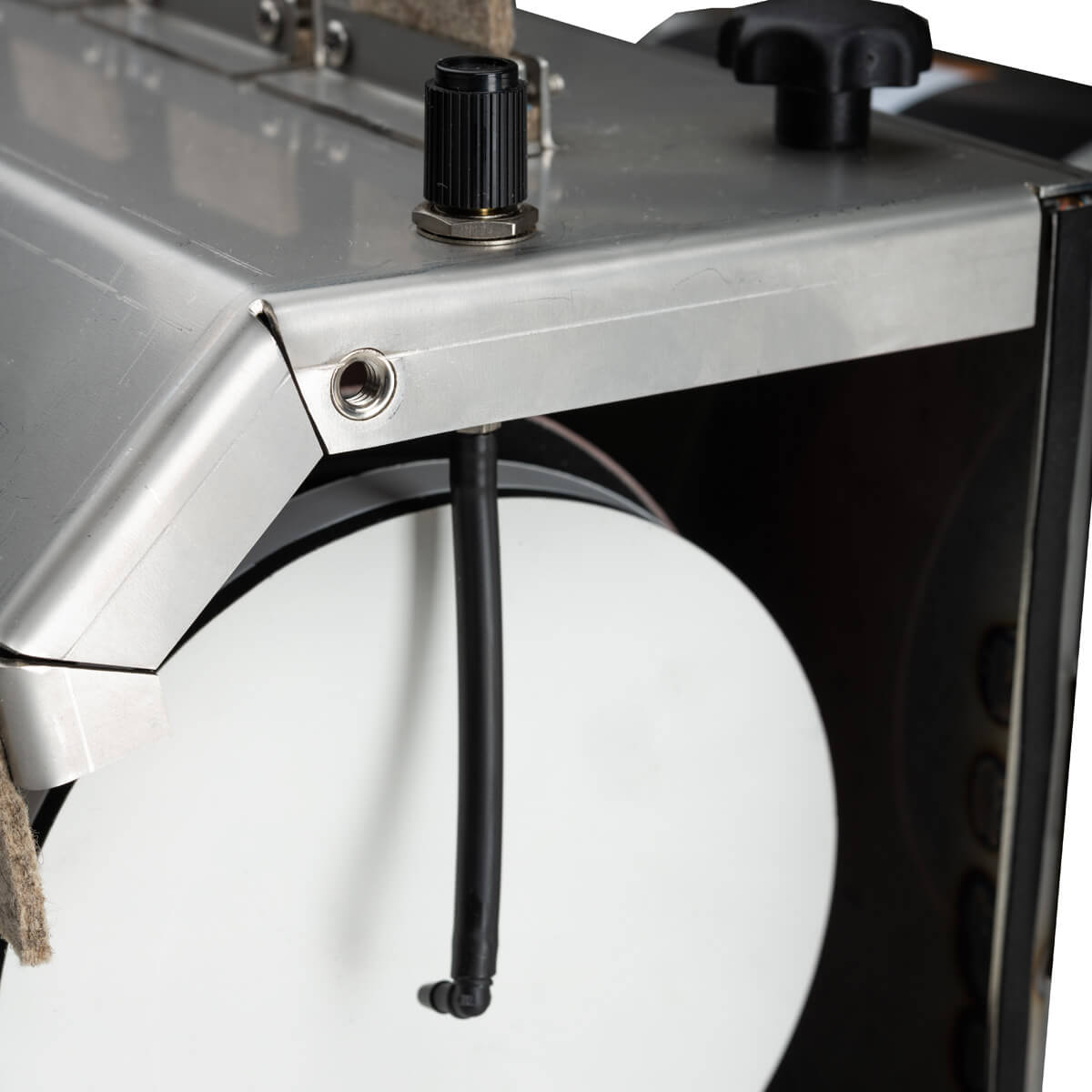

The KNC6 Rev2 has been redesigned based on customer feedback to enhance both usability and serviceability. It now features two replaceable felt strips that can be easily changed with just a screwdriver and a new water control valve on the hood, eliminating the need to open the door. The side shields are upgraded with hinges and larger cutouts for effortless access to each disc.

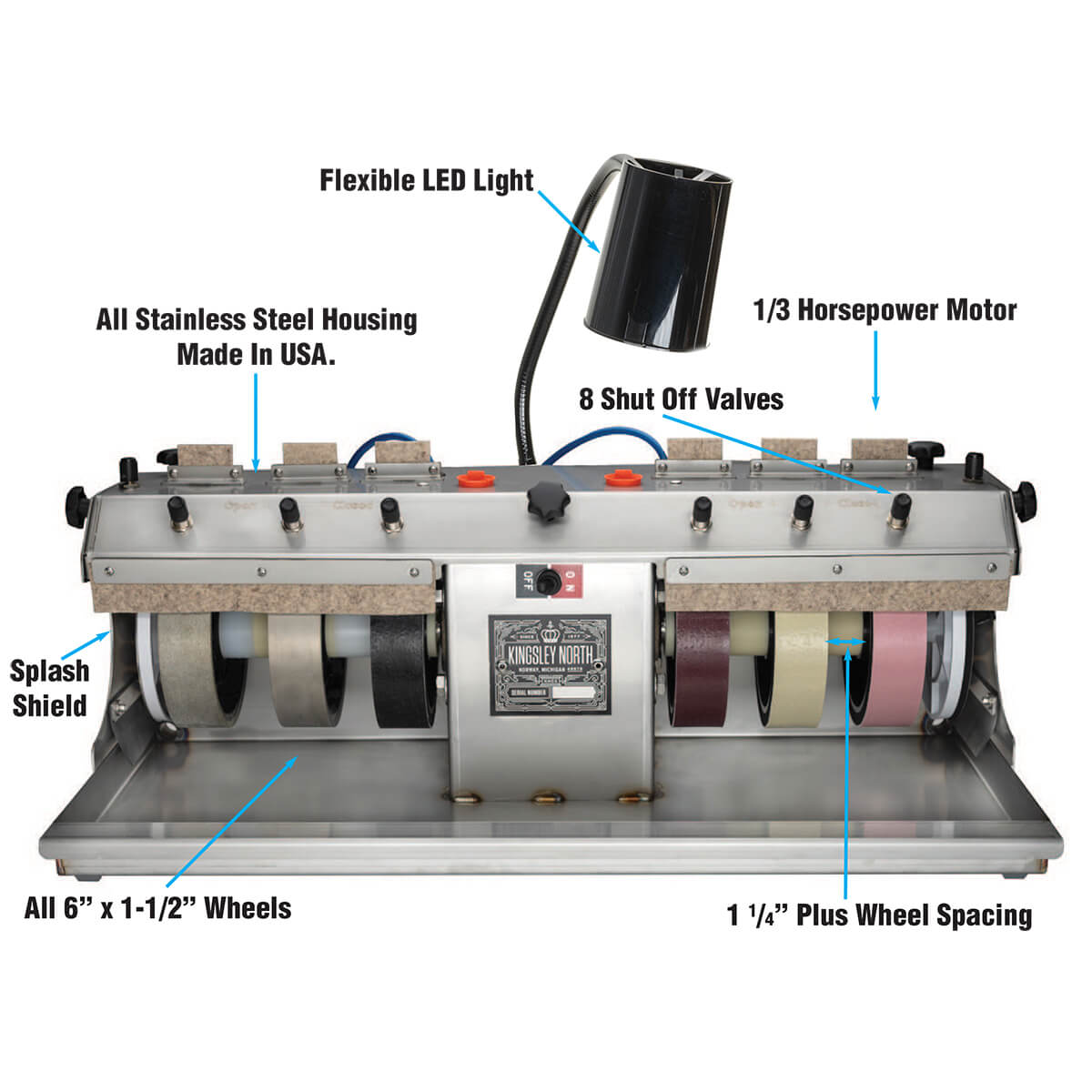

- 1" stainless steel shaft
- Full 304 stainless steel chassis
- Integrated arbor nuts tapped for ¼-20
- 8 shut off valves
- All wheels are 6" x 1-1/2"
- Diamond Wheels included: 80, 220, 280, 600, 1200, 3000
- Space between wheels (edge to edge) - 1.25 inches
- Discs included:
- 360 Diamond Full face
- polishing disc pre-charged with cerium oxide
- (2) 3/4" drain holes
- Drain tubing
- Ships in two boxes from Norway, MI.
- 1/3 HP motor
- Submersible water pump
- Flexible LED light
- 1-year warranty on machine and motor
- Machine packaging Dimensions: 32"L x 23"W x 14"H
- Machine dimensions: 26"L x 22"W x 10"H
- *Free Shipping to the Contiguous 48 States
This equipment is made of American-made industrial-quality 304 stainless steel (non-magnetic). It is normal to see exposed welds and some light scratches or scuff marks. These will not affect the performance of this machine.
Video: Review of the Kingsley North Cabber 6 cabbing machine
YouTuber Michigan Rocks reviews the Kingsley North Cabber 6, a cabbing machine for polishing raw stones for lapidary projects.Customer Reviews
Thank you for submitting your review
Is this dual speed?
This is just one speed.
I currently have a DP Genie, but want to add another cab machine. Does the KNC6 have the ability to have water on both side simultaneously like the Genie does? I teach and would like to have a person on each side to facilitate the class.
If it is no more than 1 valve open perside, then yes it should work. Bu the the flow will decrease.
What is the cost of your North Cabber 6 with the Diamond Pacific wheel set? Looks like the machine is in stock but was wondering if the DP wheels were as well.
Search for sku: 1-1338. We have allocated the Nova and Galaxy wheels for these units. So, yes, they are in stock.
Is there the ability to extend the arbor to add a trim saw like CabKing?
So with the CabKing and Genie trim saw attachements you aren't extending the shaft to have a trim saw. You are taking off the existing wheels on the right-hand side to make room for the spacers and blades. We recommend just getting a dedicated trim saw.
What is the Inner and Outer Diameter of the drain hoses for the KNC6 machine?
1" OD & 3/4" ID
Is the drain hose that comes with the KNC6 3/4" Inner diameter or is that the Outer Diameter? I need to purchase more drain hose for my KNC6.
3/4 inch inside diameter is correct.
How do your Kingsley North wheels compare to the Nova wheels, specifically quality & life span?
The KN wheels are ready to use as soon as you receive the machine. That is, there is no break-in required. The Nova wheels will require breaking in. They will also generally last longer. At the end of the day, both wheels will bring your stone to a polish. You could start with the standard wheels and switch them later on, it is only a couple of spacers in difference.
How does your Kingsley North wheels compare to Nova?
The Nova wheels will last longer. The grits are the same however and either will produce a polished stone.
Where does the water come from?
The submersible pump, which goes into a 5 gallon pail. The water supply tubing is coming from the back of the machine.
Do you ship to EU? With 220V motor?
Yes, email us and we can setup an order.
I purchased the regular 6" cabbing machine.My machine has different wheels than the one Rob demonstrated. The foam backed wheels have a smooth texture on them? I was wondering if I needed to remove a packing layer off of the wheels or are they ready to use right out of the box?
These wheels require no break in and are ready to use.
is it possible to get a 220v motor whit this machine?
Yes, email sales@kingsleynorth.com with your country and we can source a power cord for you.
Can the canner be used without fastening to a board or tabletop?
Yes, it can be used without the hold down clips in place
Are the wheels provided your TXR type?
No, they are just the regular smooth Kingsley North wheels. No break-in required.
Does this machine need to be operated at a certain temperature?
The motor can not be operated above 104 f ambient room temperature.
Hello if I was to get this could I use other wheels on it say nova / galaxy/ sintered /poly resin
Yes, with the right spacers you could,
canI use my 6 inch wheels on here with an adapter? Is so what adapter do I need? I have some sintered wheels that are 6 inch that I would hate to waste.
This machine takes 6 inch wheels. The arbor size is 1 inch.
I am looking at buying some replacement Nova wheels for my KNC6. I currently have the standard wheels provided with KNC6. Do I need purchase the bushings to accommodate the new Nova 6" wheels for the KNC6 1" shaft or does the standard wheels that came with the KNC6 already have bushings that I can reuse on the new Nova wheels?
You will just need different spacers, no wheel bushings are required. Are you placing all of the wheels? This will depend on how many wheels you are replacing.
What is the wheel RPM?
The arbor shaft on the machine will be around 1,600 rpm
Do you recommend water over oil for cooling?
Water only for this Cabber. This includes a pump that is only usable in water.
The cerium polish pad number in the parts list isn't correct. Can you give me a part # for the Polish pad (Attached to the rubber backing wheel already)?
This SKU is for the Cerium disc alone is 1-0303 (depending on your purchase date this could be 6" or 5.5"). If you want the complete setup, call us, we have new discs that aren't listed yet.
Packing foam looks blown in. Can it be removed without cutting it/breaking it off the cabbing machine?
To ensure the machine arrives undamaged we use this foam. You can break the foam in order to remove it from the machine.
You Might Also Like
-
CABKING WHEEL SET 6V3
Regular price $362.00Regular priceSale price $362.00Availability: In Stock -
Cabber Replacement Felt Strip - Grey - Rev 1 - KNC6
Regular price $2.35Regular priceSale price $2.35Availability: In Stock -
Cerium Oxide Polishing disc 6" - No Hole
Regular price $17.70Regular priceSale price $17.70Regular price$17.70Sale price $17.70 SaleAvailability: In Stock -
KNC6-8 Rev 2 - Replacement Top Felt - Grey
Regular price $2.35Regular priceSale price $2.35Availability: In Stock -

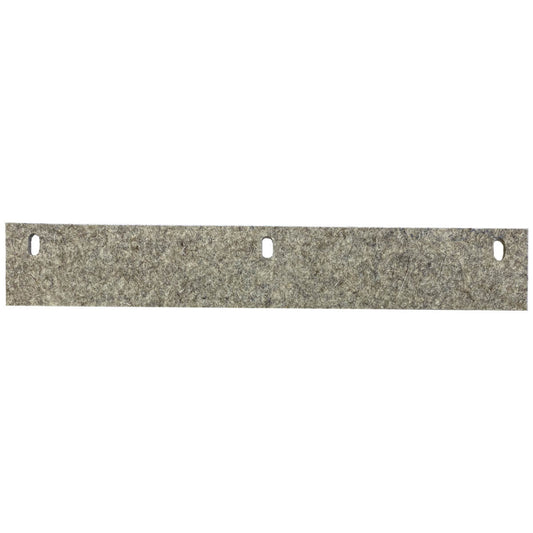

KNC6 Rev 2 - Replacement Front Felt - Grey
