Product details

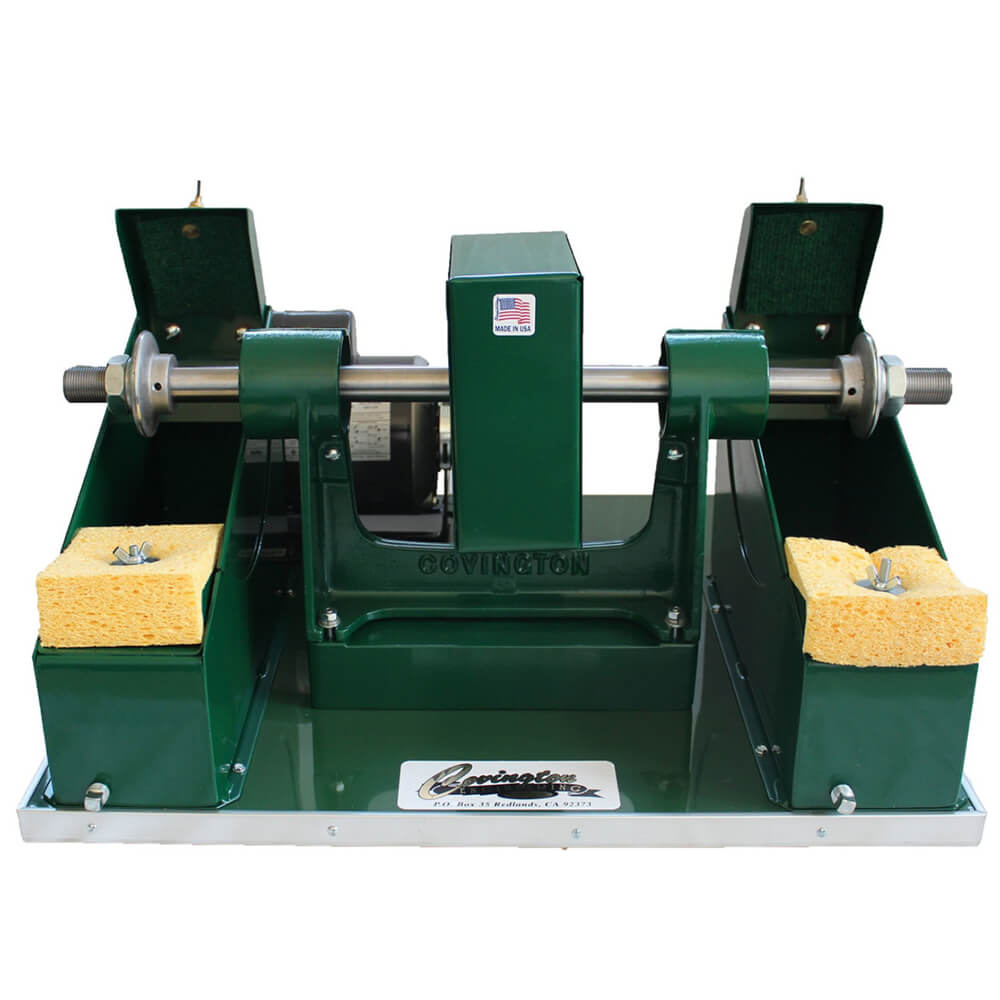

Description Vertical Glass Beveler
- Adjustable Sponge Bench Minimizes Splash
- Back Plate with Spray Nozzle
- Adjusts to Wheel Size
- Removable Tank Sides for Easy Wheel Change
- Unobstructed Access to 6", 8", and 10" Wheels
- Heavy Duty Ball Bearings, Neoprene Sealed and Greased for Life
- The Vertical Glass Beveler is a quality machine designed to bevel inside or outside curves. This two station unit accepts 6", 8", and 10" wheels. The arbor can be quickly disassembled (4 bolts) for pulley change or bearing inspection. A water valve and spray nozzle are built in for easy hookup. The water valve takes 1/4" OD plastic tubing for gravity water flow or 1/4" copper tubing for pressure systems. The wheel speed can be determined by the size of the wheel, 420rpm for 10" wheels, or 785rpm for 8" wheels, or 1,100rpm for 6" wheels. Choose the speed that is needed for the wheel diameter you expect to use. If two wheel sizes are to be used, choose the faster speed. Wheels turn toward the operator and up. This unit ships fully assembled with belt guard, 1/2hp motor, instructions, and product guarantee. *Please note that this unit is sold without wheels.
- Shipping from Idaho - we will call with shipping quote
Price
$1,057.00
Brand
Covington Engineering
MPN
Motor HP
Dimensions (Inches) (LxWxH)
