Rectifiers by Grobet USA

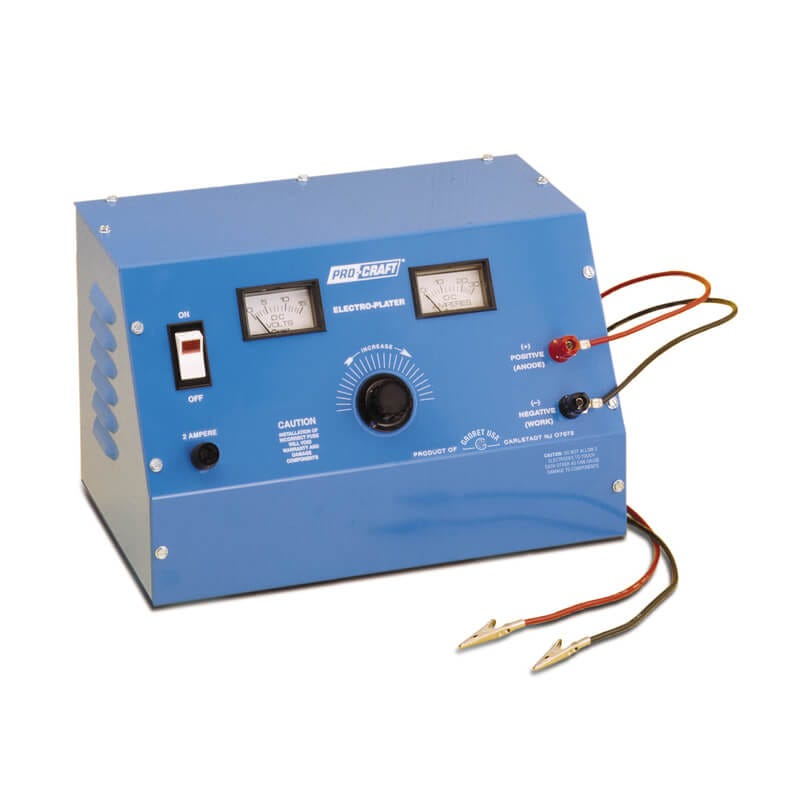

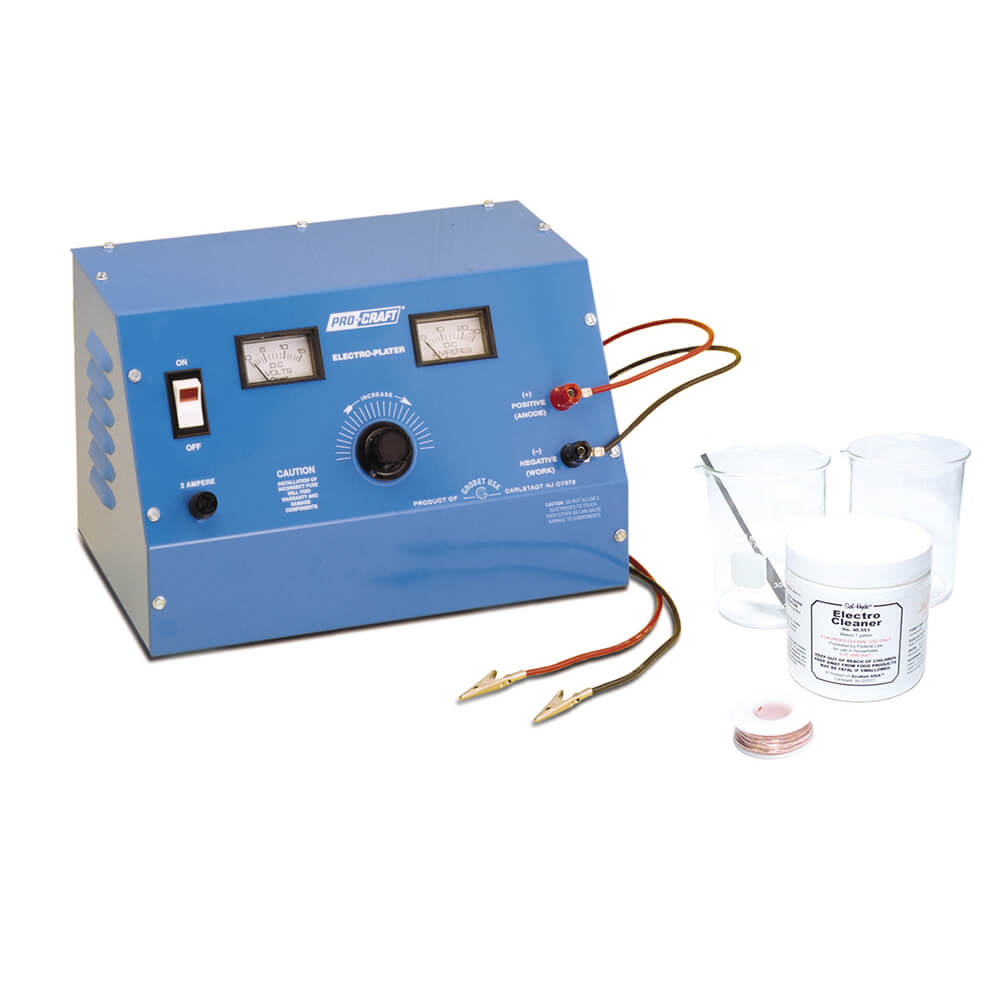

Precision-built in the USA, continuous-duty, solid-state electronic units with a range of power to handle all plating needs. Works by means of the powerstat control, to produce desired voltage. All units have pilot light and both DC ampmeter and voltmeter for measuring current under load. All units come with a set of lead wires with alligator clamps and terminal lugs. 25 and 60 amp units can be used for electro-stripping. 3 amp, 10 amp and 25 amp rectifiers are available with an accessory kit which includes: a pair of 600 ml beakers, copper plating wire, electro-cleaning compound and a stainless steel anode. 110 Volt. 10 AMP RECTIFIER Specifications: - 0 to 10 amps output, continuous duty - 0 to 10 volts DC output - Runs plating baths up to 1 gallon except for rhodium which is 2 quarts - Steel cabinet measures 13" W x 8" H x 8╜" D. 25 AMP RECTIFIER Specifications: - 0 to 25 amps output, continuous duty - 0 to 25 volts DC output - Runs plating baths up to 5 gallon except for rhodium which is 1 gallon - Steel cabinet measures 13" W x 8" H x 8╜" D. 3 AMP SWITCH CONTROLLED RECTIFIER Specifications: - 0 to 3 amps output, continuous duty - Switch control has settings of 2, 4, 6, 8, and 10 volts DC output - Steel cabinet measures 6" W x 4" H x 4" D.
