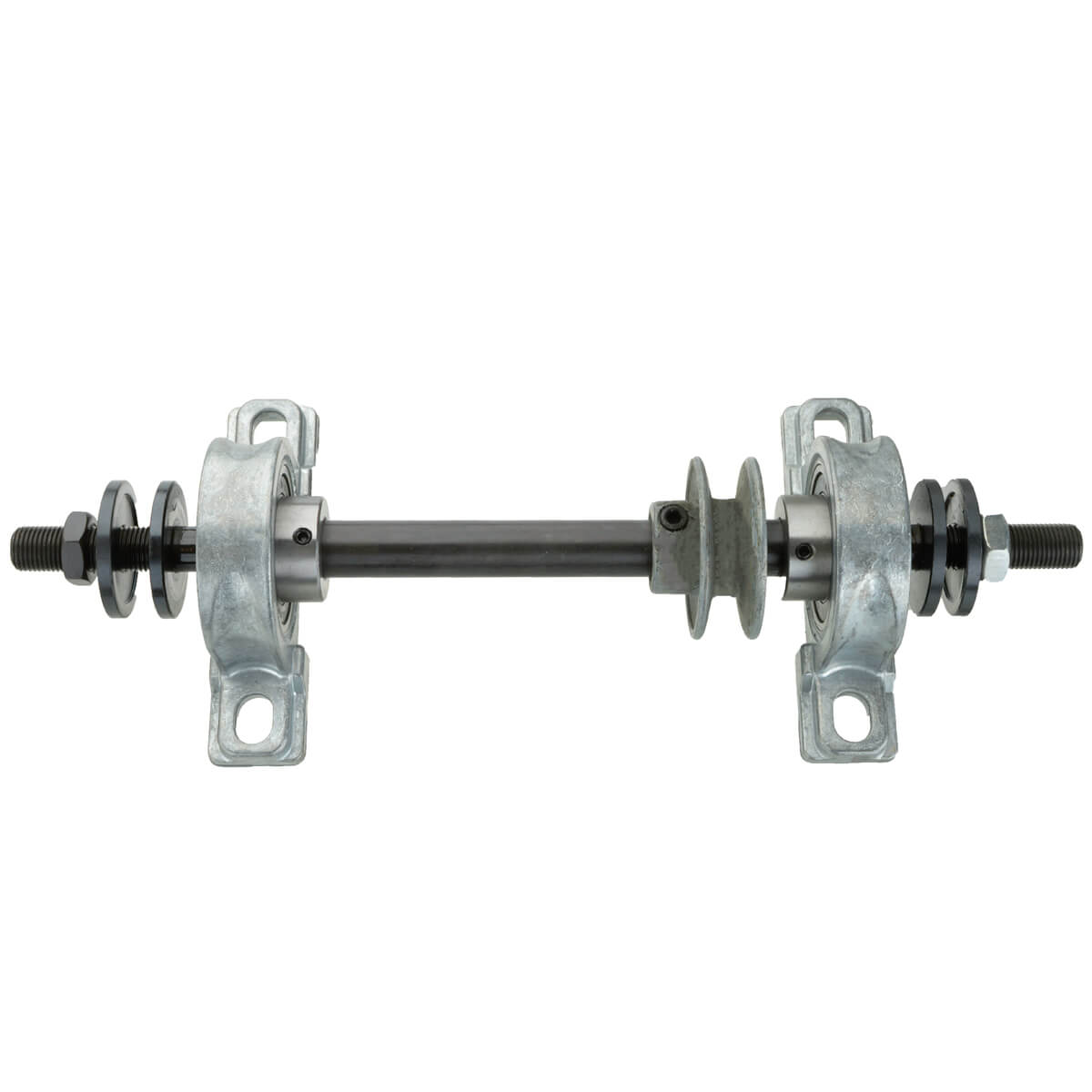

Bench Mandrel Arbor

Attach this tool to an electric motor with v-belt to get high quality, low-cost workstation for grinding and polishing. This mandrel arbor features pillow block ball bearings. The ball bearings are precision-grade and are permanently sealed and lubricated for a long, maintenance-free life. The shaft features two mounting points. They are right and left-hand threaded respectively. This arbor includes the nuts and flanges for both shaft ends. The 5/8" shaft ends are stepped down to 1/2" diameter.

• 2"x5/8" pulley Diameter for 1/2" V-belt
• 1/2" arbor

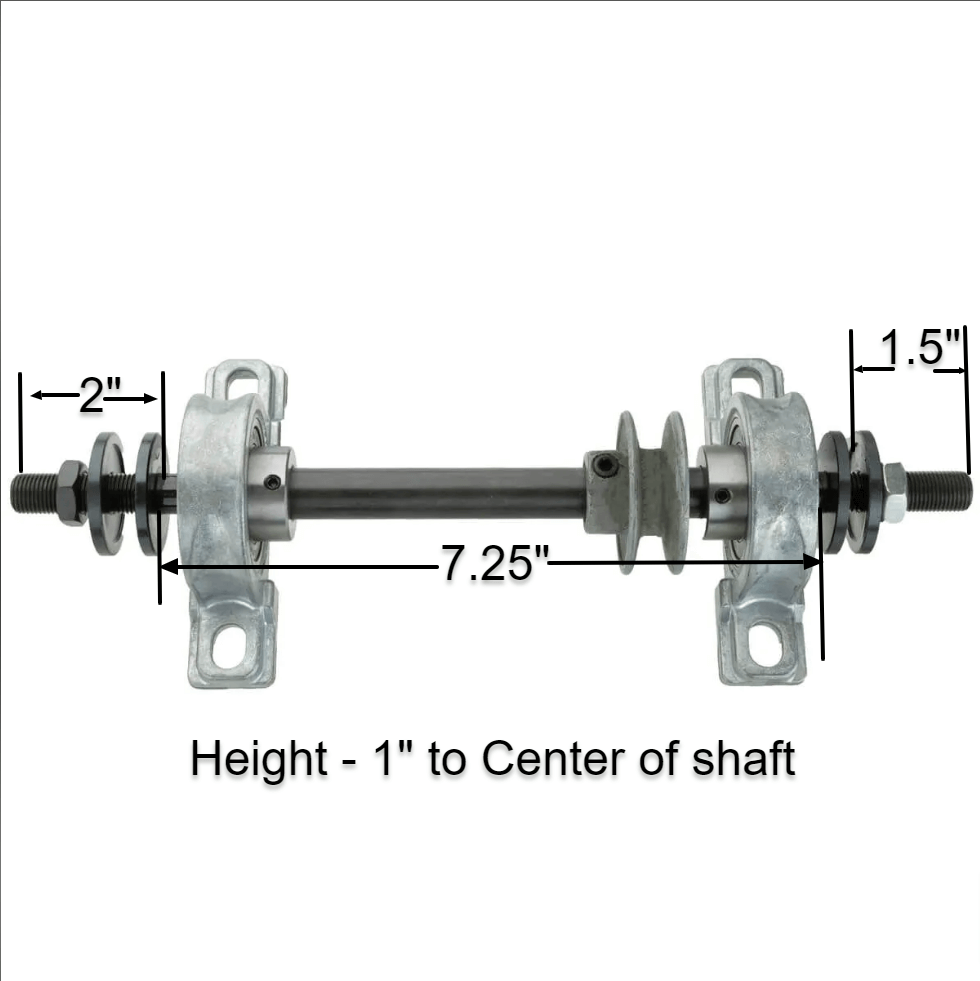

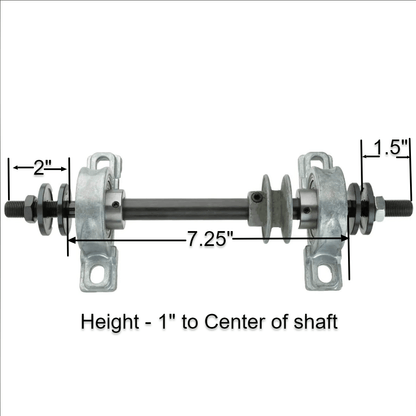

• 1" height to the center of the shaft
