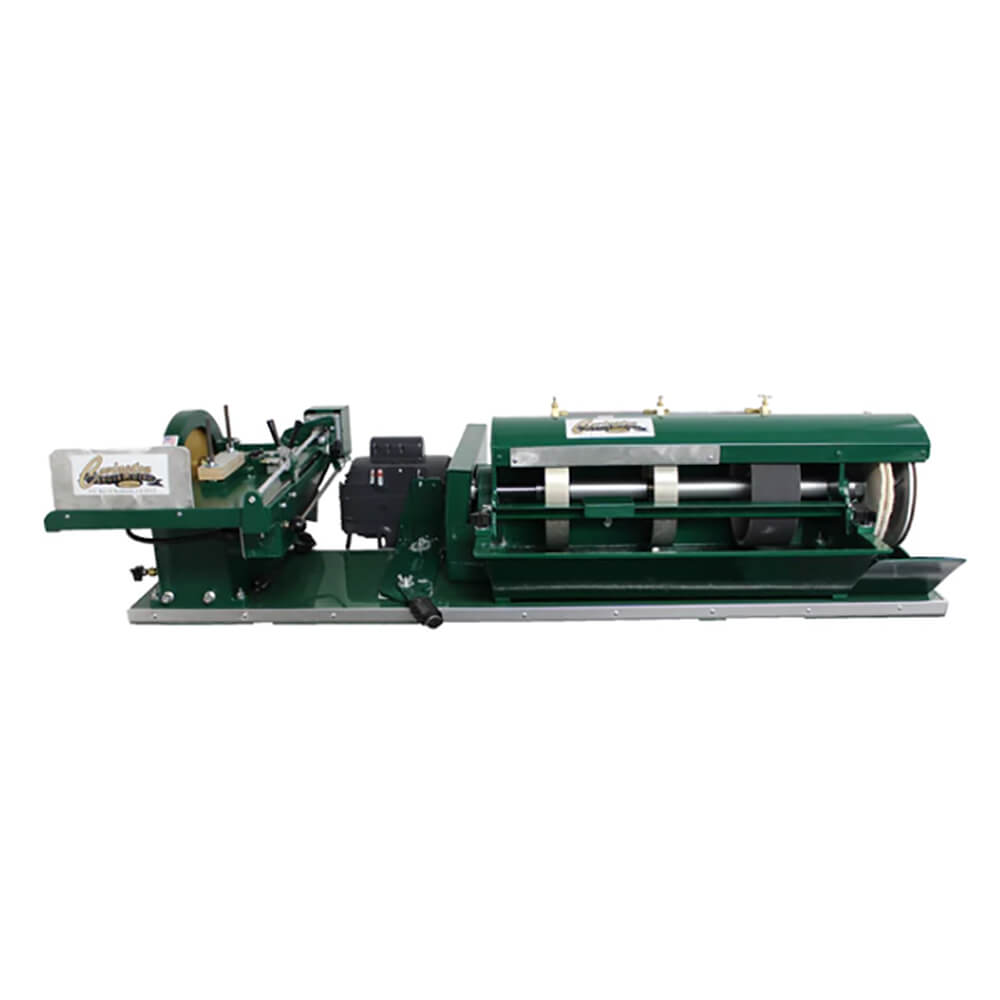

8" Deluxe Combo Diamond Unit - 447DDC

The Covington 8" Deluxe Combination Unit (Power Feed Model) is designed for cutters who want a complete trimming, grinding, sanding, and polishing system in one compact package. This heavy-duty workstation features **two independent motors**—one for the 10" trim saw and one for the grinding station—so you can cut and finish your pieces with consistent torque and smooth performance. Ideal for hobbyists and production cutters alike, it arrives fully assembled and ready for use.

This Deluxe Diamond Unit includes everything needed to take your stones from rough to a finished polish. Covington’s metal-bonded wheels, expandable drum, diamond discs, and leather pad provide a full progression of grits, while the built-in spray nozzles ensure even water coverage across the entire wheel face. A removable hood makes cleanup and wheel changes simple, and the included diamond compound, extender fluid, polishing accessories, and instructional materials offer a complete turnkey setup.

Key Features

• Dual-motor design: 1/3 HP trim saw motor and 1/3 HP high-torque grinding motor

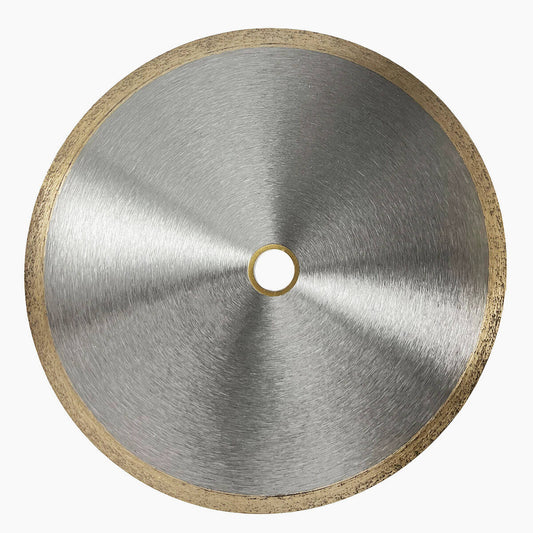

• 10" trim saw: Equipped with Covington Gold Series diamond blade
• Easy maintenance: Removable hood for fast cleaning and wheel changes
• Integrated water system: Spray nozzles cover the full wheel face
• Flexible water hookup: Accepts ¼" OD plastic tubing (gravity) or ¼" copper tubing (pressurized)
• Fully assembled: Mounted on Covington’s aluminum-topped Lam-I-Cushion base
• Optional accessories: Cabinet stand and trim saw hood sold separately
• Freight shipping: Ships palletized from Idaho
• Lead time: 6–8 weeks

Included Components

• (2) Metal-bonded diamond wheels: 8" × 1½" in 100 grit & 220 grit

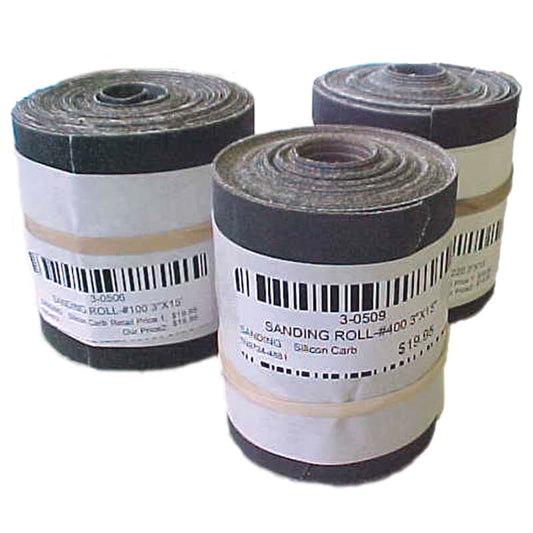

• Expandable drum assembly: 8" lever-lock drum with 400-grit silicon carbide sandcloth
• Diamond finishing disc: 8" × 1"-14RH aluminum head with 1200-grit diamond disc
• Leather polishing head: 8" × 1"-14RH aluminum head with leather disc
• Diamond compound: 5-gram syringe of 50,000 mesh paste
• Extender fluid: 2-oz bottle for diamond charge application
• Koolerant powder: Sample container (#1 polish)
• Dopping supplies: Dop sticks, dop wax, and brush
• Documentation: Instructions and product guarantee
